Printed specifications.
English reference transcription from original PDF page 22, printed page 12. Original catalogue panel visually inspected. Values are transcribed as printed, not a current technical approval. Print conflicts are flagged for confirmation.
| Nominal pressure (as printed) | 40MPa |
|---|---|
| Nominal flow (English line, as printed) | 125L/mm |
| Material (English line) | Stainless steel |
| Material (translated from Chinese line) | Stainless steel or 45# steel (translated) |
| Nominal medium (English line, as printed) | 5% emulsified oil & 95% neutral water emulsion |
| Interface note in catalogue | Interface can be customized |
Confirm before ordering.
- The catalogue prints the flow unit as L/mm. This has not been silently corrected or converted; confirm the intended unit and rated flow before ordering.
- The English material line states Stainless steel, while the Chinese line states stainless steel or 45# steel (translated). Confirm the exact supplied material.
- Original drawing excerpts preserve the source geometry and printed dimensions. Confirm the applicable drawing revision and dimensional units before selection.
Dimensions & circuit symbols.
- Authentic catalogue photograph: FDSGII(B10)X.

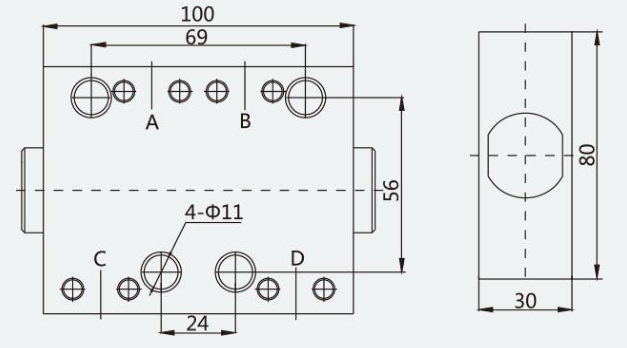

- Original dimension drawing for FDSGII(B10)X. Dimensions and port labels are reproduced as printed; confirm drawing revision and dimensional units before selection.
- Original hydraulic schematic symbol for FDSGII(B10)X. Port letters and lines are unchanged.
- The omitted bilingual section headings mean 'Dimensions' and 'Hydraulic schematic symbol'. The source interface annotation states that the interface can be customized.
- The original-language material line states 'stainless steel or 45# steel'; the catalogue English line states 'stainless steel'. Confirm the actual supplied material.
Bilingual product specification text and original-language section headings are outside these crops, not erased. See the separately transcribed English product details and original catalogue download for the complete source panel.
These are direct excerpts, not redrawn engineering figures. Do not scale an on-screen image to determine manufacturing dimensions. Request the approved dimensioned drawing and confirm its units and revision. The catalogue with English certificates and original bilingual product pages is available separately for source verification.
